Focus on Ease of Use

500-mA Low Dropout Voltage Regulator
with Soft-Start Time Adjustment and Power-Good Function

NR1600 Series

See Product Information / Datasheet ≫

! Do you have any of these problems?

  - Parts integration is not progressing.

  - Want an LDO for systems with sequence control limitations.

  - Need to find a replacement part due to a sudden EOL notice.

If there was one LDO that could solve all of them.

man
parts

Provided by Nisshinbo Micro Devices, No. 4 in the world for LDO shipments.

The NR1600 series solves these problems with three ”Easy to Use” features.

denchi

1. High Versatility

- Wide input voltage range required for low voltage products
- High output current for varsatile use
- Multiple packages to fit your application
flex

2. High Flexibility

- Power-good Function
- Soft-start time adjustment
- Flexible output voltage setting

plp2

3. High Availability

- Reliable longevity of supply
- Reliable quality performance and quality support
- Reliable design support

NR1600 Series Covers All Three in One.



Learn more about the ease of use in these videos.

  See Product Information/Datasheet  ≫

1. High Versatility

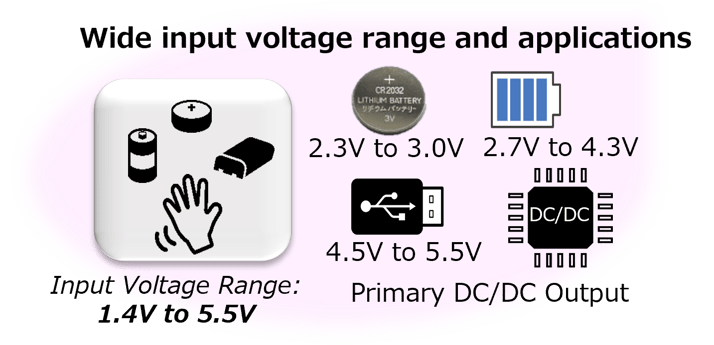

No worries if the input voltage of 5 V fluctuates: The maximum input voltage of 5.5 V

den

 Adequate output current: The maximum of 500 mA

　　Available for relatively high current applications such as camera modules and high power MCUs

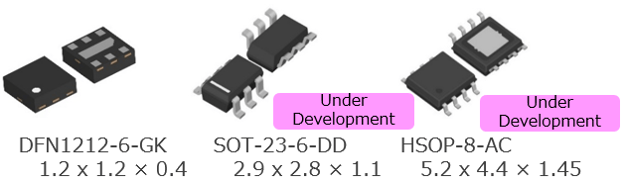

From small to high heat dissipation: Wide variety of packages

pkg8



2. High Flexibility

This single product provides power-on sequence control: Power-good function

cir2

Excellent inrush current compensation: Soft-start time adjustment

inrush2
seq1

Flexible output voltage adjustment: Available in internally fixed and externally adjustable types

fo2
ao2

3. High Availability

 Safe to use without worrying about product discontinuation: PLP applicable

This product is applicable to the Product Longevity Program (PLP) which maintains product supply for a minimum of 10 years.

For details on Product Longevity Program (PLP)

vl624_plp

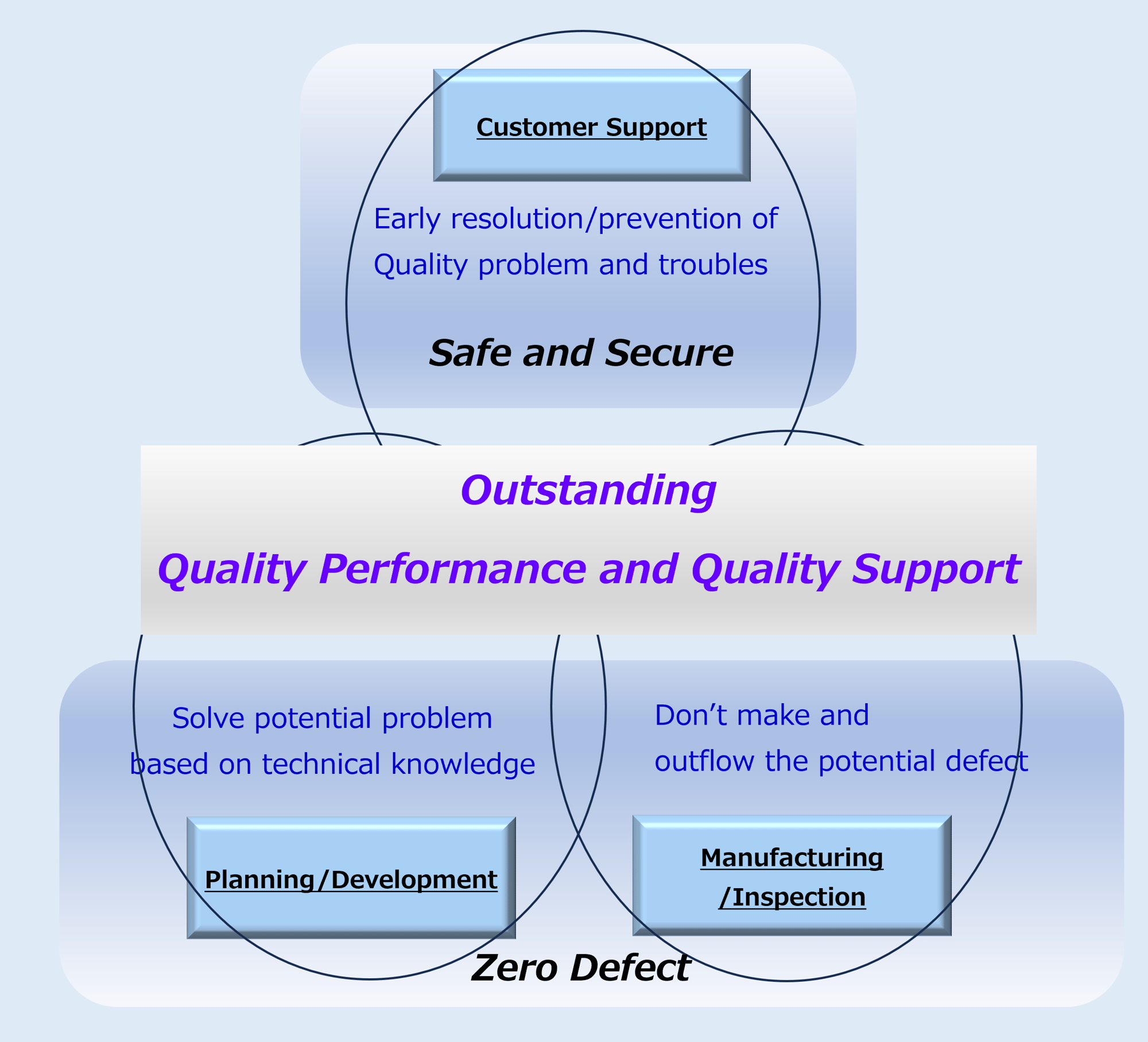

 Reliable Quality Performance and Quality Support

qpqs

Excellent design support

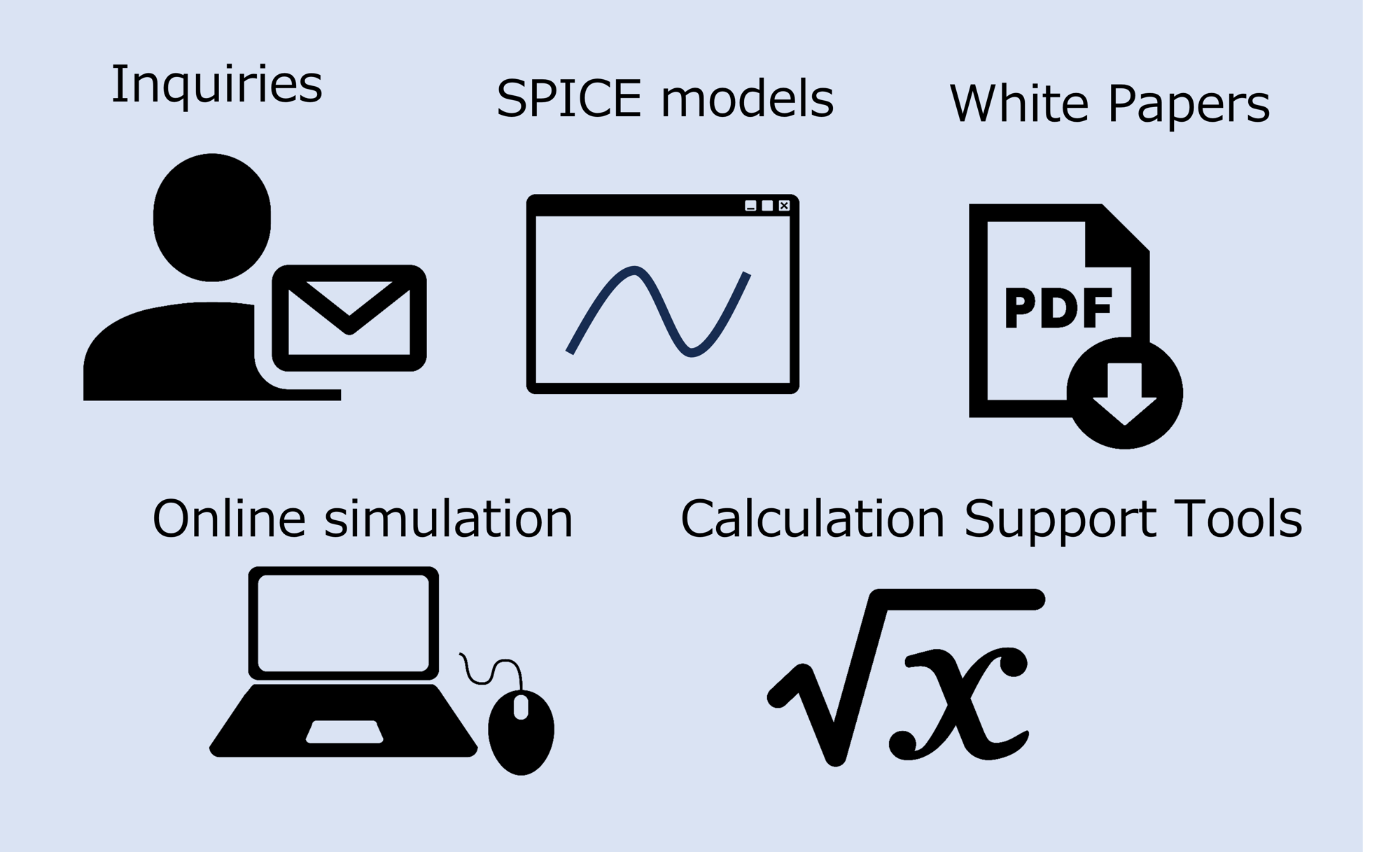

Nisshinbo Micro Devices membership site, myNISD

"myNISD " is available free of charge with only account registration.



mynis2

No. 4 in the world for LDO shipments,

Nisshinbo Micro Devices' LDO*

en3

Buy Online

MOUSER
Digi-Key

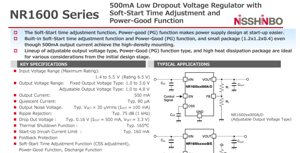

Product Details (PDF)

NR1600CVP_en2

The premiere LDO with a focus on ease of use

  Inquiries about the NR1600 Series

Inquiries require registration with "myNISD ", the Nisshinbo Micro Devices membership site.
Business/Technical Inquiries (Electronic Devices)

"myNISD "is available free of charge with only account registration.
